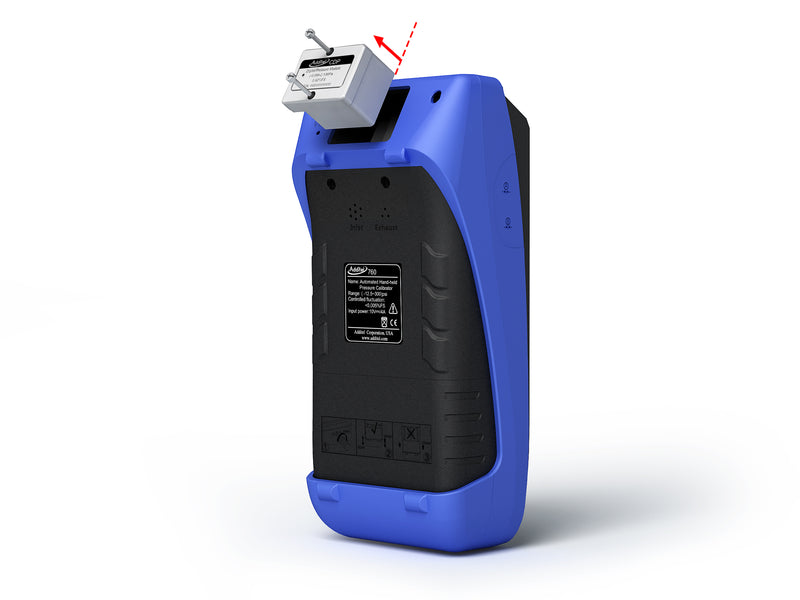

Additel 760-LLP Handheld Automatic Pressure Calibrator

Product Description

Weighing less than 4 lbs (1.8 kg), the ADT760’s innovative design contains a built-in pump, precision pressure sensor, internal controller and a large touch-screen color display. To generate pressure, simply key in the desired pressure and the Additel 760 will do the rest. Each unit has four channels: one internal pressure channel for source and measure pressures, two external pressure measurement channels, and one electronic measure and source channel. This series of calibrator has three standard models with the option of adding HART communications, documentation and data logging.

ADT760-LLP
The 760-LLP is designed for low pressure calibration and comes with a built-in pressure module to ±30 inH2O (±75 mbar) and provides an accuracy to 0.05%FS (see ordering information for configurations with the option of the ADT760 and a module of your choice). Additional internal pressure modules (ADT155 series) are available and provide a variety of ranges down to ±0.25 inH2O (±0.62 mbar). The accuracy of 0.05%FS and control stability 0.005%FS is based on the internal module’s span. Measurements can be made in gauge or differential mode.


    Sku: ADT760-LLP
    Vendor: Additel
    On Back-Order

    • Fully automatic calibrator with built-in pump and controller
    • Switchable internal pressure modules for expandable ranges
    • Accuracy (1 year) of 0.02%FS
    • External pressure modules available (measure only)
    • Less than 4 lbs (1.8 kg) for handheld operation
    • Source pressure, measure pressure and electrical
    • 4 channels
    • Optional HART communications
    • Optional data logging and task documenting
    • USB, Wi-Fi, and Bluetooth communications
    • ISO 17025-accredited calibration w/data included

    Applications

    • Differential gauge calibration
    • Low pressure calibration
    • Differential transmitter calibration
    • Differential switch calibration
    • HART-smart transmitter calibration (-DL version only)
    • Pressure monitoring and data logging (-DL version only)

    See Resources for Product Datasheet

    Includes:

    • 760 Pressure Calibrator
    • ADT100-760-KIT Adapter Set (excluding ADT760-LLP)
    • ADT100-760 Hose (excluding ADT760-LLP)
    • 9816-X 110V/22V External Power Adapter
    • 9724 Chargeable Li-ion Battery
    • 9025 Test Leads
    • CD Manual
    • NIST-Traceable Certificate
    • USB to USB Cable (-DL version only)
