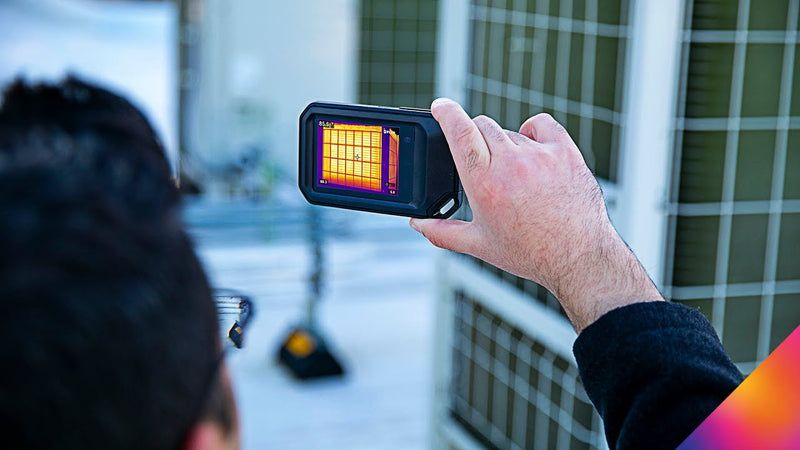

Flir C5 Compact Thermal Imager, 160x120

Product Description

With the FLIR C5 in your pocket you’ll be ready anytime to find hot fuses, air leaks, plumbing issues, and more. Identifying hidden problems is easy with the 160 x 120 (19,200 pixels) true thermal imager, MSX® (Multi-Spectral Dynamic Imaging), 5-megapixel visual camera, and LED flashlight. The C5 directly uploads and stores your images to the FLIR Ignite™ cloud, where you can organize and back up files. Then instantly share images with customers or create professional reports that document the problem and required repairs.

Sku: FLIR-C5
Vendor: Flir
2 left in stock.
$1,030.00 CAD
Maximum quantity available reached.

  • FIND AND TROUBLESHOOT

    Quickly find hidden faults and reduce diagnostic time thanks to MSX, 160 x 120 true thermal imaging, and 1-Touch Level Span

  • DOCUMENT AND SHARE

    Directly upload images using FLIR Ignite cloud connectivity, then create professional reports and email them to customers

  • RUGGED, RELIABLE, COMPACT

    Take the pocket-portable C5 with you to every job - it's IP54 rated for protection against water and dust and designed to withstand a 2 m drop

OVERVIEW
Accuracy
At ambient temp. 15 to 35°C (59 to 95°F) and object temp. above 0°C (32°F), 0 to 100°C (32 to 212°F): ±3°C (±5.5°F), 100 to 400°C (212 to 752°F): ±3%
Object Temperature Range
-20 to 400°C (-4 to 752°F)
IR Sensor
160 x 120 (19,200 pixels)
Touchscreen
Capacitive touch
Screen Rotation
Yes
FLIR Screen-EST Mode
No
CONNECTIONS & COMMUNICATIONS
Bluetooth
PAN
Storage Media
Internal memory and onboard FLIR Ignite cloud connectivity (with Wi-Fi)
USB
USB 2.0, Type-C connector
WiFi
802.11 a/ac/b/g/n (2.4 and 5 GHz)
Image Upload
Directly upload images to FLIR Ignite cloud library and services


  • Flir C5 Camera
  • Wrist Strap Lanyard
  • USB Cable
  • Pouch
