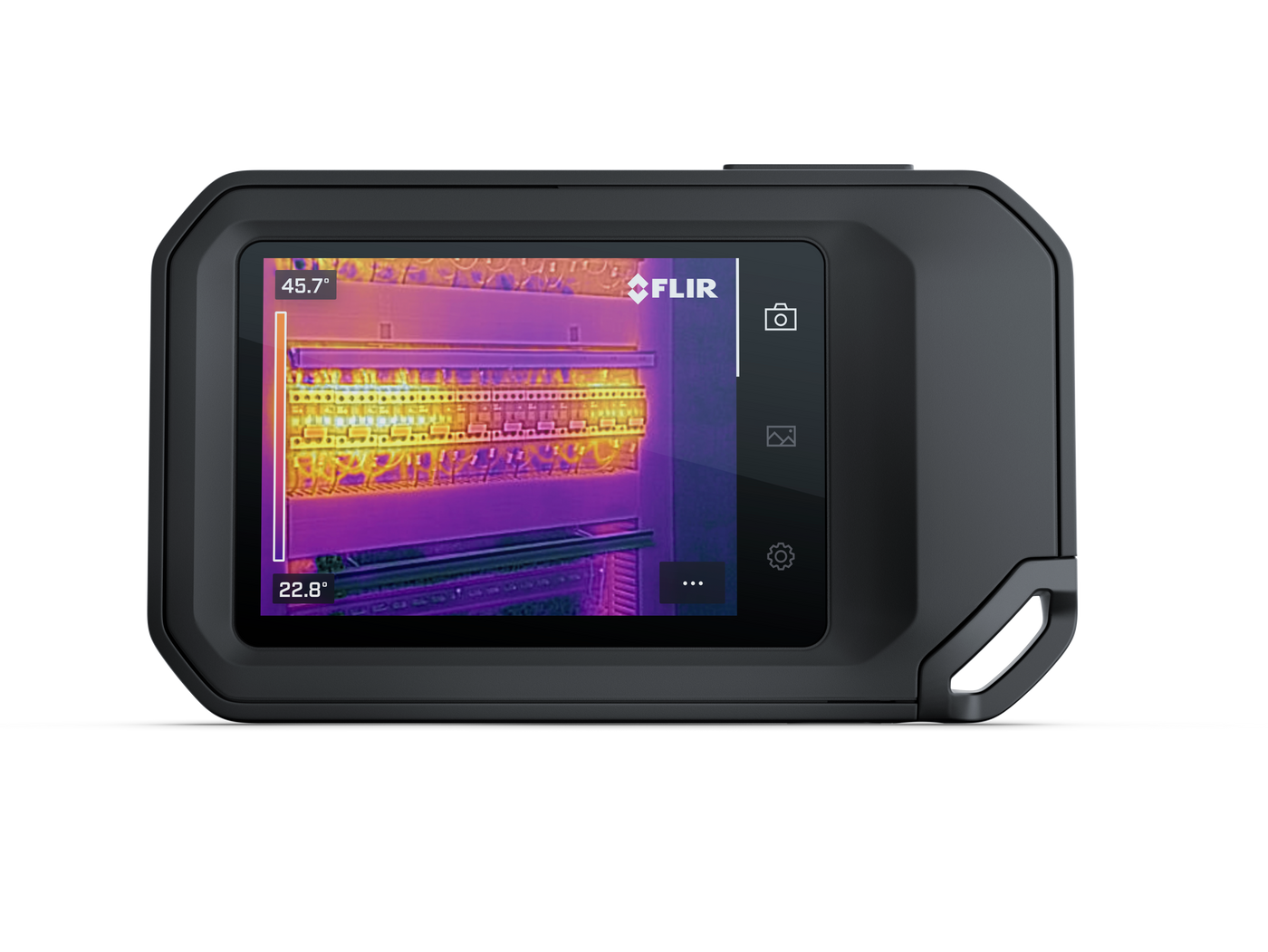

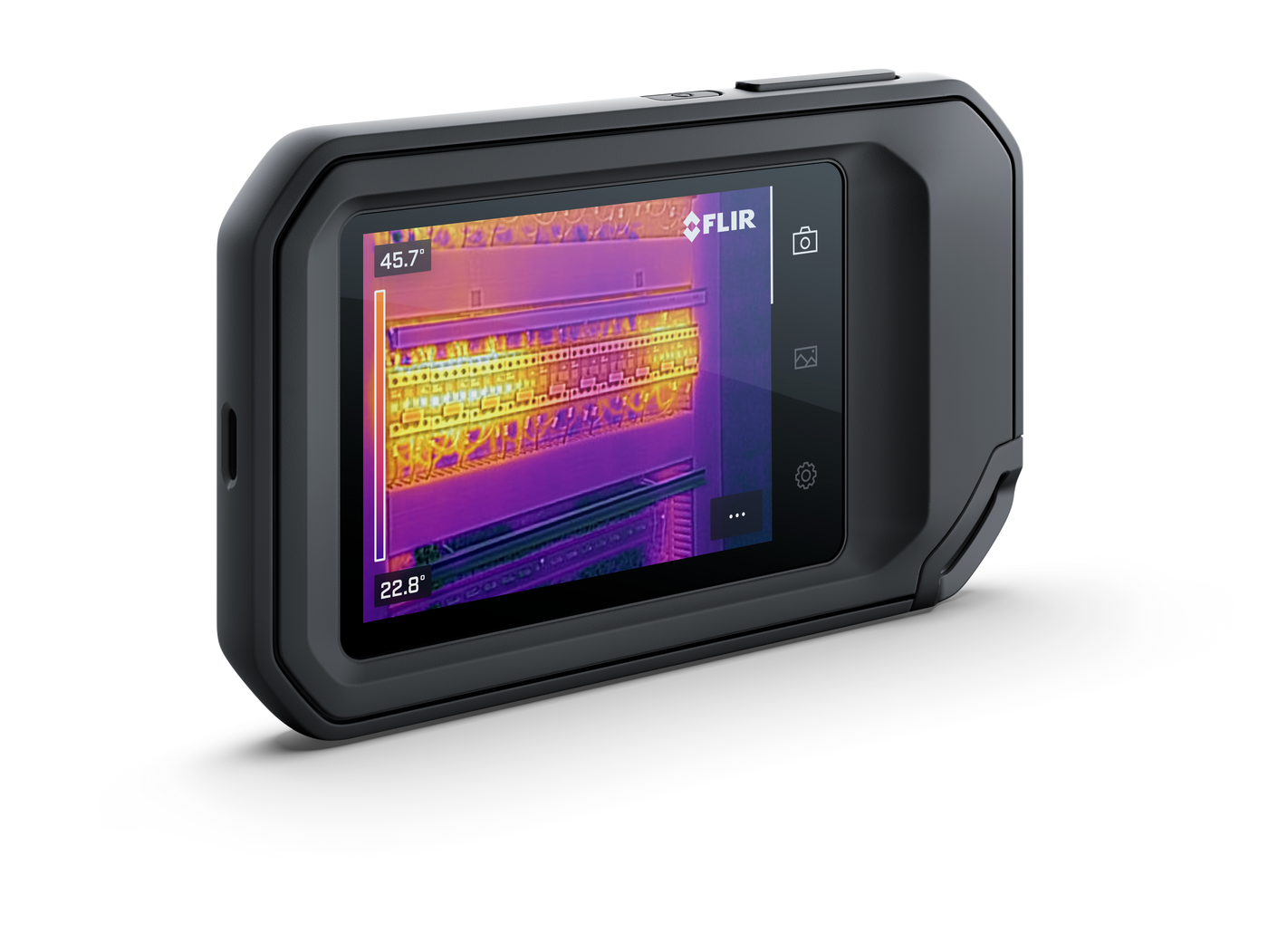

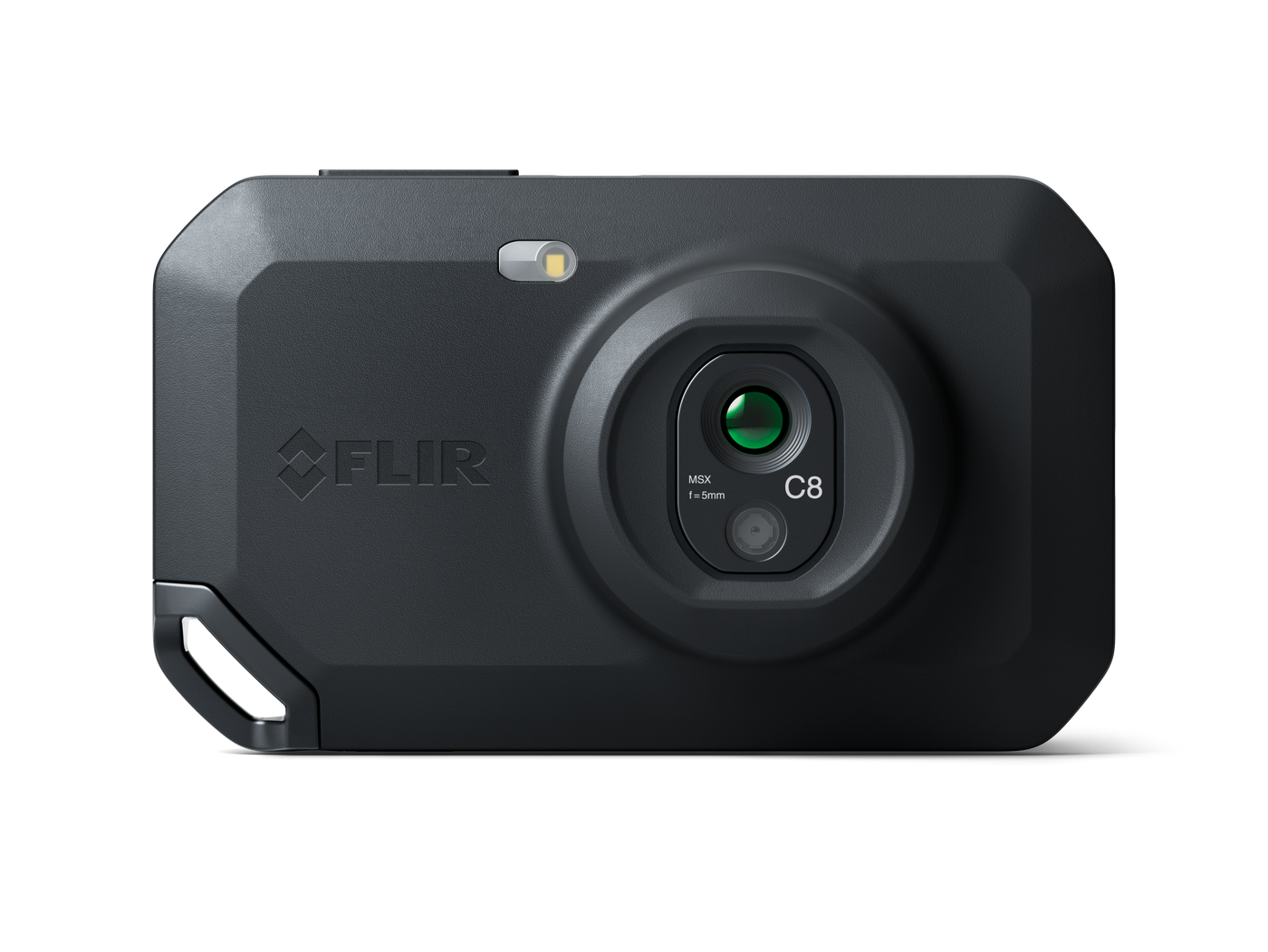

Flir C8 Compact Thermal Imager, 320x240
Product Description
The Flir C8 builds off the industry-leading Flir C5 as the most popular entry-level thermal imager on the market. Identifying hidden problems is easy with the newly improved 320 x 240 resolution true thermal imager, MSX® (Multi-Spectral Dynamic Imaging), 5-megapixel visual camera, and LED flashlight.
Overview
-
Key Features
• Superior thermal imaging quality with the 320 × 240 (76,800 pixels) true thermal imager for faster and more accurate analysis to find faults and anomalies
• Flir-patented MSX® enhancement, which embosses visible details onto thermal images for faster problem identification - Main Applications
• Electrical and mechanical maintenance
• HVAC, building diagnostics and restoration
• Electric vehicle inspections
Specifications
OVERVIEW
IR resolution 320 × 240 pixels
Thermal sensitivity/NETD <50 mK
Field of view (FOV) 35° × 27°
Minimum focus distance 0.4 m (1.3 ft)
Spatial resolution (IFOV) 2.0 mrad/pixel
F-number 1.4
Image frequency 9 Hz
Focus Focus free
Digital zoom Yes, zoom pinch, 1 to 4× continuous
What's in the Box
- Flir C8 Camera
- Wrist Strap Lanyard
- USB Cable
- Pouch
