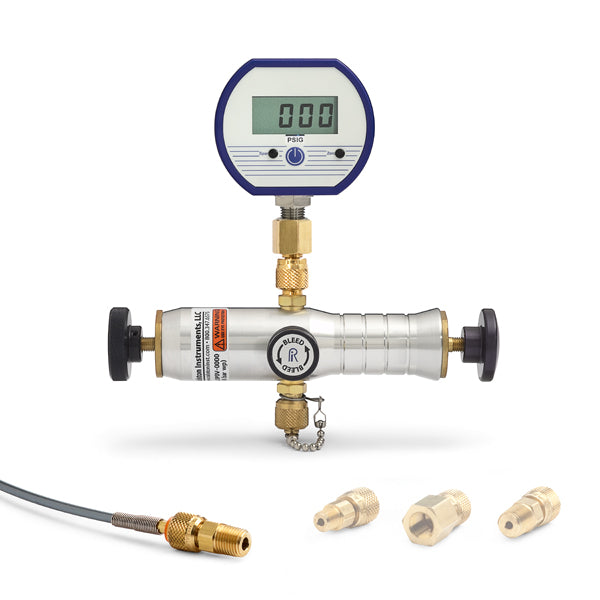

Ralston DP0V-0000 Pneumatic Low Pressure Test Pump

Product Description

Choose the Ralston DP0V-0000 as the ideal solution for very precise low pressure calibration or differential pressure testing using an external pressure calibrator as the reference to generate up to +125 PSI. The most popular low pressure pump of choice by industry pros. See the Ralston DPPV-0000 when requiring Vacuum (-23 In Hg).

Sku: RAL-DP0V-0000
Vendor: Ralston
1 left in stock.
$473.00 CAD
Maximum quantity available reached.

  • Generate +125 PSI (8.6 bar) pressure
  • Two outlet ports allow connection to reference pressure gauge or pressure calibrator as well as device under test, thus eliminating a tee
  • Large volume fine adjustment piston provides precise control, even at very low pressures
  • Precisely vent pressure with soft seated bleed valve
  • Made in U.S.A.
Country of origin USA
Pressure Reference None
Process Connection 1/4" Male NPT
Reference Connection None
Max Pressure 125 PSI / 8.6 bar / 860 kPa
Max Vacuum 0 InHg / 0.0 kPa
Materials Anodized Aluminum, Brass, Stainless Steel
Seal Materials Buna-N, Delrin, Teflon
Min Operating Temperature 0 °F / -18 °C
Max Operating Temperature 130 °F / 54 °C


  • QTHA-2MB0 - 1/4" male NPT x male Quick-test, no check-valve, brass
  • QTQT-HOS-3ft - Quick-test 6900 psi hose, brass hose ends, 3 ft (92 cm) long
