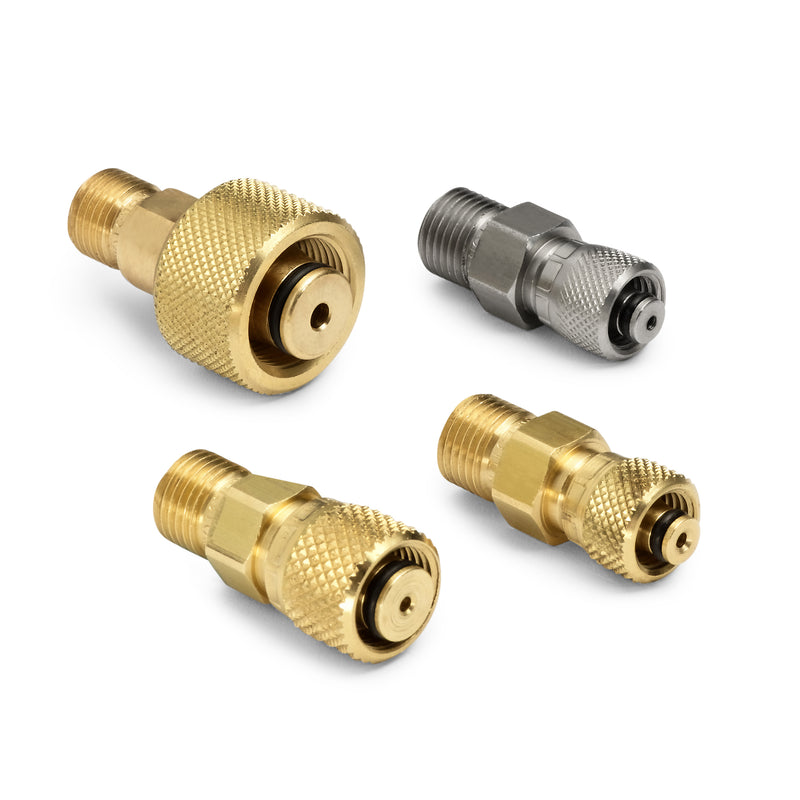

Ralston QTHA-3TB0 Tube Fitting Quick-Test Adapters

Product Description

3/8" tube fitting x male Quick-test, no check-valve, brass

Ralston Tube Fitting Quick-Test Adapters provide a gas-tight, wrench-free connection to any type of tube fitting, including Parker, Swagelok, Tylok, and SSP. Their leak-free seal helps save time and improve the overall efficiency of the process it is being used for.

Sku: RAL-QTHA-3TB0
Vendor: Ralston
48 left in stock.
$27.50 CAD
Maximum quantity available reached.

Ralston Tube Fitting Quick-Test Adapters Help Save Time

Ralston tube fitting adapters are easy and quick to connect. Simply remove the tube ferrules and nuts, and connect the adapter. When the connector is positioned on the connection, it creates gas-tight sealing without the need of a wrench. Tightening with your hands is enough to have a strong connection. Our Tube Fitting Quick Test Adapters help save time in hydrostatic testing, pressure calibration or pressure safety valve setting.

Advantages of Ralston Tube Fitting Quick-Test Adapters

  • Easy to connect, tighten and disconnect without a wrench. The seal uses an integrated O-ring that does not require additional tightening. Simply tighten by hand.
  • Our Quick-Test Adapters provide excellent pressure-tight, leak-free sealing
  • Available in sizes from 1/16 to 2 inches and 2 to 50 mm
  • Integrated locking mechanism aids in maximum grip with minimalist deformation of the tube adapter
  • Can withstand vibration fatigue and thermal shock, providing superior tube support
  • 100% stainless steel test fitting adapters that are resistant to corrosion or heavy-duty use
  • Compatible with most industry-rated tube fittings

Length 1.53 in / 39 mm
Width 0.72 in / 19 mm
Country of origin USA
Materials Brass
Max Operating Temperature 225 °F / 105 °C
Max Pressure 5000 PSI / 350 bar / 35 MPa
Max Vacuum 0 InHg / 0.0 kPa
Seal Materials Buna-N
End 1 Connector
3/8" Male Tube Fitting
End 1 Quick Disconnect Yes
End 2 Connector
Male Quick-test
