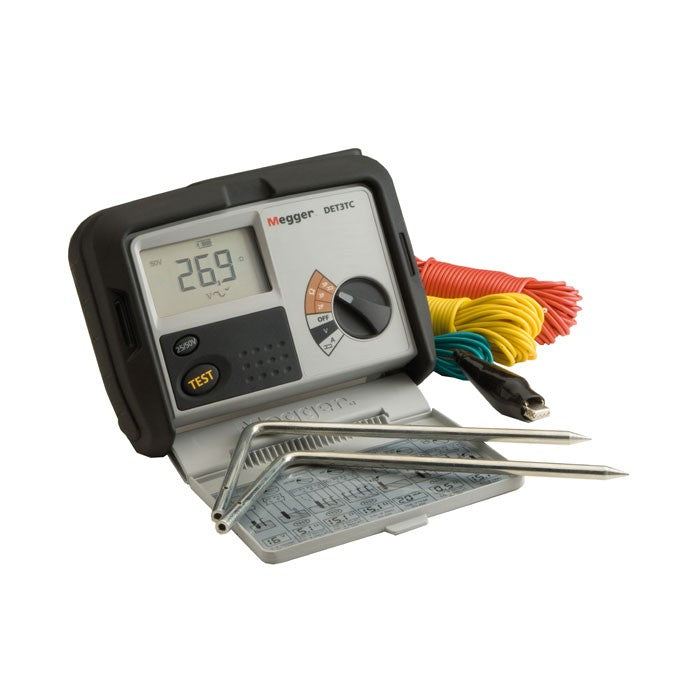

Megger DET3 Series 3-Terminal Digital Ground Tester

Product Description

The DET3TD is for basic ground testing while the DET3TC includes a current measuring function for ART (Attached Rod Technique) testing capabilities. With this added function, on-site grounds can be tested separately without having to remove the utility connection (as explained further in this document).

By using the optional ICLAMP with the DET3TC, the user can augment the traditional fall-of-potential measurement method with ART (Attached Rod Technique), which allows electrode testing without disconnection and also leakage current measurements down to 0.5 mA.

Sku: MEG-DET3TC
Vendor: Megger
On Back-Order
$1,080.00 CAD

  • IP54 rated
  • 2 and 3 point testing
  • Selectable 25 V or 50 V output
  • Complete with lead and stake kit
  • Simple one button operation
  • Hard carry case
  • Delivered with calibration certificate
  • Attached Rod Technique (ART)



DET3TC

DET3TD

Ingress Protection

IP54

IP54

C Spike Check

Automatic

Automatic

P Spike Check

Automatic

Automatic

Noise Check

Automatic

Automatic

Noise Rejection

40 V pk to pk

40 V pk to pk

2-Wire Test

Yes

Yes

3-Wire Test

Yes

Yes

No Disconnect Testing (ART)

Yes, with optional ICLAMP

N/A

Earth Current Range with ICLAMP

0.5 mA to 19.9 A

N/A

Resistance Range

0.01 to 2000Ω

0.01 to 2000Ω

Resistance Accuracy

2% ±3 digits

2% ±3 digits

Earth Voltage Range

0 - 100 V a.c.

0 - 100 V a.c.

Earth Voltage Accuracy

2% ±2 V

2% ±2 V

Display

LCD

LCD

Battery Type

8 off AA cells

8 off AA cells

Operating Temperature Range

-15 to +55ºC

-15 to +55ºC

Storage Temperature Range

-40 to +70ºC

-40 to +70ºC

Safety

EN61010-1 CAT IV 100 V

EN61010-1 CAT IV 100 V

Dimensions

203 x 148 x 78 mm (8 x 5.7 x 3.2 inches)

203 x 148 x 78 mm (8 x 5.7 x 3.2 inches)

Weight

1 kg

1 kg


  • 3-Terminal Digital Ground Tester
  • Hard Carry Case
  • Replacement 3-Wire Lead Set (15m Red Wire, 10m Yellow Wire, 4m Green Wire)
  • 2 x Ground Test Stakes (200mm, 8mm)
