Fluke 377FC Non-Contact True RMS AC/DC Clamp Meter

Product Description

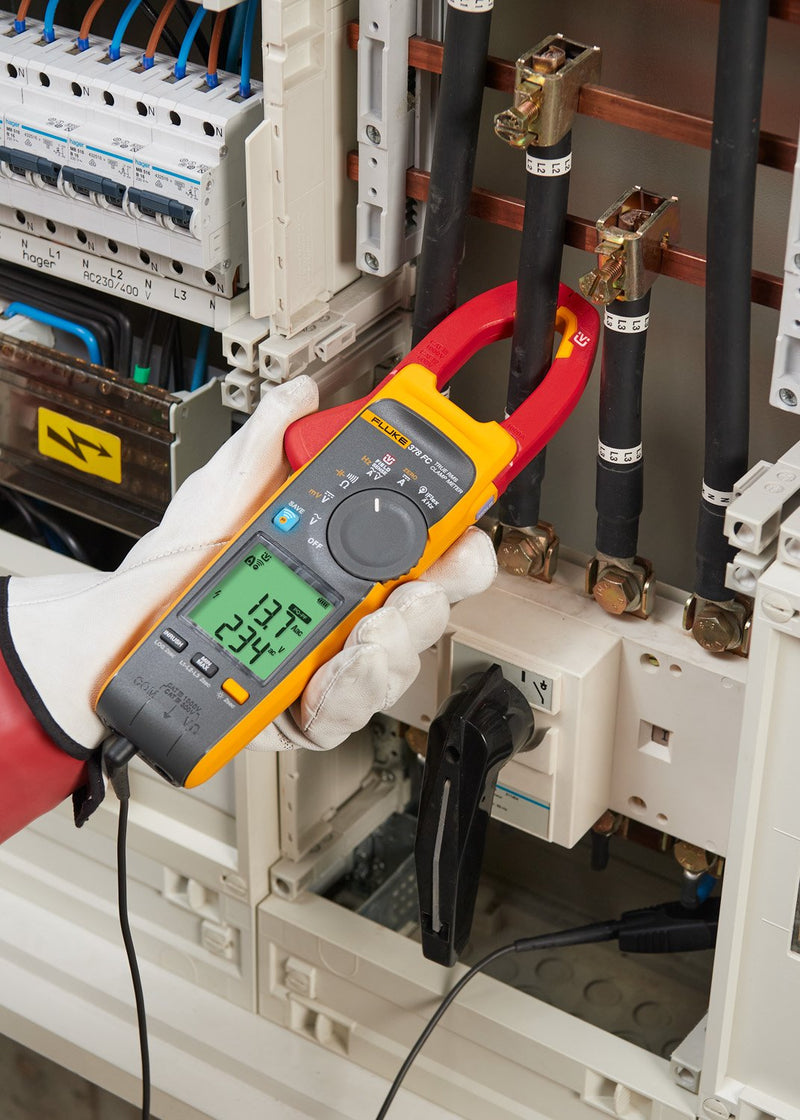

The Fluke 377 FC true-rms clamp meter uses FieldSense™ technology to make testing faster and safer, all without contacting a live conductor. You get accurate voltage and current measurements through the clamp jaw. Simply clip the black test lead to any electrical ground, put the clamp jaw around the conductor and see reliable, accurate voltage and current values on the display.




Sku: FLU-377FC
Vendor: Fluke
2 left in stock.
$899.00 CAD
Maximum quantity available reached.

Features

  • Measure voltage and current with your clamp jaw
  • Faster, safer testing all without touching a live wire using FieldSense™ technology
  • Complete three-phase voltage and current tests in three quick steps

Voltage and current measurements with FieldSense™ technology

No more hand-written notes or complicated math.

  • Complete 3-phase voltage and current tests in three easy steps
  • Full set of phase-to-ground and phase-to-phase values calculated
  • Displayed on your smart phone and saved to the cloud via Fluke Connect software
  • Phase rotation calculated and shown on the Fluke Connect software

Measure extremely high current with iFlex™ probe

Use the included iFlex flexible current probe to measure ac current as high as 2500 A. The iFlex probe provides access to large conductors in tight spaces.

Easy to see, easy to use with included tools

Your job will get easier when you use this clamp meter:

  • The display turns green when a stable FieldSense measurement is detected
  • Visual Continuity provides a bright green screen for easy detection of continuity in noisy work areas
  • The magnetic hanging kit, with 9" (23 cm) hanging strap, lets you hang your clamp wherever you need: to a steel cabinet door; around a pipe; on a nail or screw head
Current
AC - Jaw Range: 999.9 A
Resolution: 0.1 A
Accuracy: 2% ±5 digits (10 to 100 Hz); 2.5% ±5 digits (100 to 500 Hz)
Crest factor (50/60 Hz): 3 at 500 A; 2.5 at 600 A; 1.42 at 1000 A; Add 2% for C.F. >2
AC - Flexible Current Probe Range: 2500 A
Resolution: 1 A (≤2500 A) 0.1 A (≤999.9 A)
Accuracy: 3% ±5 digits (5 to 500 Hz)
DC Range: 999.9 A
Resolution: 0.1 A
Accuracy: 2% ±5 digits
Voltage
AC - FieldSense Range: 1000 V
Resolution: 1 V (≤1000 V)
Accuracy: ≤4/0 AWG - 3% ±5 digits (45 to 66 Hz); ≥4/0 AWG - 5% ±5 digits (45 to 66 Hz)
AC - Test Leads Range: 600.0 V, 1000 V
Resolution: 0.1 V (≤600.0 V); 1 V (≤1000 V)
Accuracy: 1% ±5 digits (20 to 500 Hz)
DC Range: 600 V, 1000 V
Resolution: 0.1 V (≤600 V); 1 V (≤1000 V)
Accuracy: 1% ± 5 digits
mV DC Range: 500 mV
Resolution: 0.1 mV
Accuracy: 1% ±5 digits
Amps Frequency
Jaw Range: 5 to 500 Hz
Resolution: 0.1 Hz
Accuracy: 0.5% ±5 digits
Trigger level: 5 to 10 Hz, ≥10 A; 10 to 100 Hz, ≥5 A; 100 to 500 Hz, ≥10 A
Flexible Current Probe Range: 5 to 500 Hz
Resolution: 0.1 Hz
Accuracy: 0.5% ±5 digits
Trigger level: 5 to 20 Hz, ≥25 A; 20 to 100 Hz, ≥20 A; 100 to 500 Hz, ≥25 A
Other Measurements
Resistance Range: 60 kΩ, 6000 Ω, 600 Ω
Resolution: 0.1 Ω (≤600 Ω), 1 Ω (≤6000 Ω), 10 Ω (≤60 kΩ)
Accuracy: 1% ±5 digits
Capacitance Range: 1000 μF
Resolution: 0.1 μF (≤100 μF), 1 F (≤1000 μF)
Accuracy: 1% ±4 digits
General Specifications
General Maximum Voltage 1000 V (between any terminal and earth ground)
Battery Type: 2 x AA IEC LR6 alkaline
life: 200 hours
Display Dual readout
Automatic Power Off 20 minutes
Temperature Operating: 14 to 122°F (-10 to 50°C)
Storage: -40 to 140°F (-40 to 60°C)
Operating Humidity (Without Condensation) Non condensing (<50°F [<10°C])
≤90% RH (50 to 86°F [10 to 30°C])
≤75% RH (86 to 104°F [30 to 40°C])
≤45% RH (104 to 122°F [40 to 50°C])
Temperature Coefficients Add 0.1 x specified accuracy for each degree C >28°C or <18°C
Ingress Protection IEC 60529: IP30 (jaw closed)
Altitute Operating: 6561.68' (2000 m)
Storage: 39,370.1' (12,000 m)
Electromagnetic Compatibility (EMC) USA (FCC): 47 CFR 15 subpart B. This product is considered an exempt device per clause 15.103
Safety General: IEC 61010-1: Pollution degree 2
Measurement: IEC 61010-2-032: CAT III 1000 V/CAT IV 600 V; IEC 61010-2-033: CAT III 1000 V/CAT IV 600 V
Wireless Radio Radio frequency certification: FCC ID: T68-FBLE IC:6627A-FBLE
Frequency range: 2405 to 2480 MHz
Output power: <100 mW
Dimensions 10.78 x 3.38 x 1.85" (274 x 86 x 47 mm)
Jaw opening: 1.34" (34 mm)
Flexible current probe diameter: 0.29" (7.5 mm)
Flexible current probe cable length: 5.9' (1.8 m)
Rogowski coil length: 17.71" (450 mm)
Weight 1 lbs (463 g) with batteries

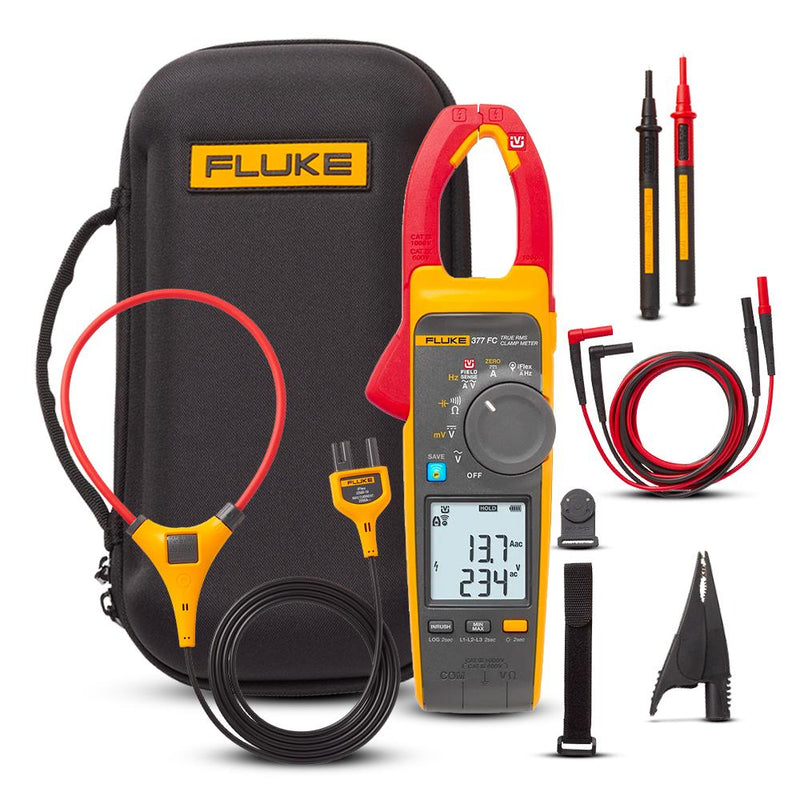

  • Fluke 377 FC Non-Contact Voltage True-RMS AC/DC Clamp Meter
  • TL224 Test Leads
  • TP175 TwistGuard™ Test Probes
  • AC285 black grounding clip (1 only)
  • i2500-18 iFlex® Flexible Current Probes 18 inch (48 cm)
  • TPAK ToolPak™ Magnetic Meter Hanger
  • Premium carrying case
  • Quick reference guide
