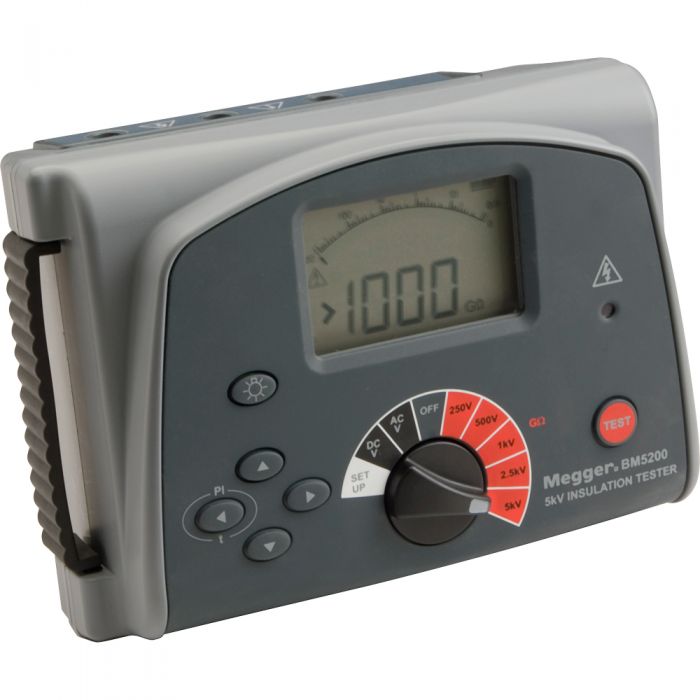

Megger BM5200 5kV Insulation Tester

Product Description

Megger BM5200 is a battery powered insulation tester with digital and analogue arc display, designed for high voltage insulation resistance testing in the maintenance and servicing of cables, rotating plant machinery, transformers, switchgear and industrial applications.

DC insulation tests are performed at 250 V, 500 V, 1000 V, 2500 V, 5000 V. Insulation resistance measuring range is 100 k Ω to 1000 G Ω. Automatic discharge for capacitive circuits under test is provided and decaying voltage displayed.

The guard terminal can be used to minimize the effects of surface leakage and hence erroneous measurements when carrying out insulation resistance tests.

Sku: MEG-BM5200
Vendor: Megger
2 left in stock.
$2,540.00 CAD
Maximum quantity available reached.

Features

  • 1 TΩ, 1.4 mA, 5 kV Compact, rugged insulation tester with digital and analogue display
  • Five test ranges; 250 V, 500 V, 1000 V, 2500 V and 5000 V
  • Insulation (InS), Polarisation Index (PI) and variable timed test (t) modes
  • Guard terminal to shunt surface leakage currents
  • Selectable DC or AC (incl. frequency) voltmeter functions
  • High voltage warning indicator
  • External voltage display after IR test
  • Automatic discharge of reactive loads and test leads
  • CATIII 600 V safety rating

Applications

  • Product test and qualification
  • Installation of equipment
  • Routine maintenance
  • Problem resolutions
Insulation range 100 kΩ to 1 TΩ
Nominal test voltages 250 V, 500 V, 1000 V, 2500 V, 5000 V
Terminal voltage accuracy < 1000 V 0...+10% of nominal test voltage
≥1000 V 0...+5% of nominal test voltage
Insulation accuracy Up to 1 GΩ: All ranges ±5% ±2 digits
Over 1 GΩ:
5000 V ±5% ±0.04% per GΩ
2500 V ±5% ±0.08% per GΩ
1000 V ±5% ±0.2% per GΩ
500 V ±5% ±0.4% per GΩ
250 V ±5% ±0.8% per GΩ
Short circuit/charge current 1.4 mA ±0.5 mA
Maximum capacitance of load 5 μF
Voltmeter accuracy 3% ± 3 V
Frequency measurement 45 Hz to 65 Hz
Frequency measurement accuracy ±2 Hz
Voltmeter range Up to 600 V a.c. or d.c.
Power supply 8 x LR6/AA batteries (included)
Battery life 5 lbs (2.3 kg)
5 hours @ 5 kV into 100 MΩ with AA Alkaline LR6 5 lbs (2.3 kg)
Guard 2% error guarding 5 MΩ leakage on 100 MΩ load
Operating temperature range and humidity -20 to +55 °C
Humidity 90% RH, 0 to 40 °C
70% RH, 40 to 55 °C
Storage temperature range -20 to +65 °C
IP rating IP40
Safety protection Insulation Cat III 600 V
EMC The product conforms to IEC 61326
Dimensions 220 mm x 115 mm x 163 mm
Weight 1.45 kg


  • Megger BM5200 Insulation Resistance Tester
  • Carrying case with lead storage
  • Battery 1.5V alkaline AA (x8)
  • 3 m lead set, medium size insulated clips
  • User guide
