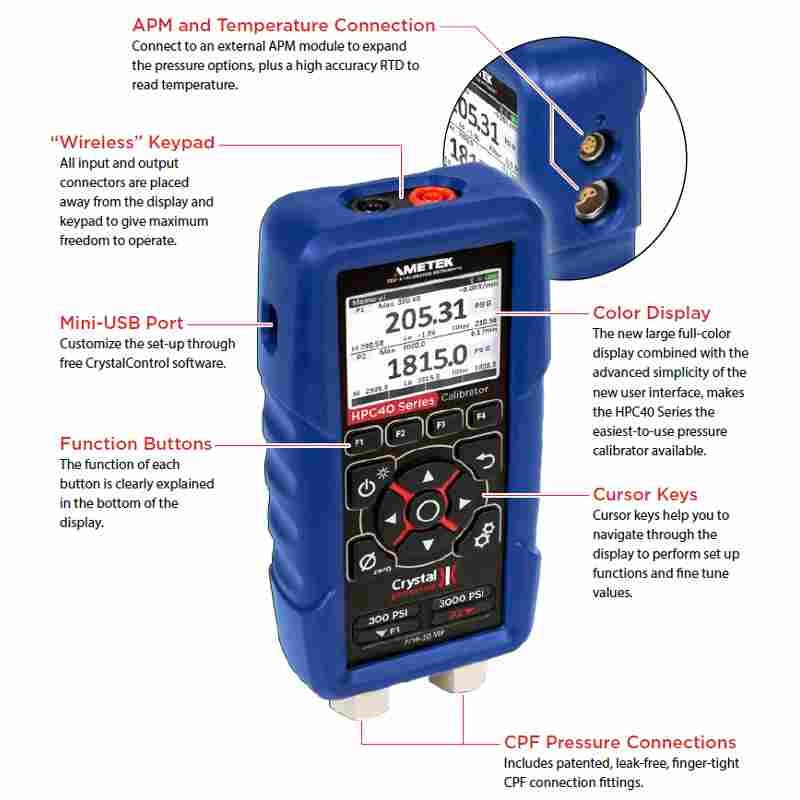

Crystal HPC40 Series Pressure Calibrator

Product Description

Building on the reputation of the Crystal IS33, the new HPC40 Series handheld pressure calibrator is the world's first combined pressure and mA loop calibrator to be fully temperature compensated from -20 to 50°C. You can count on the same accuracy whether measuring pressure, current, voltage, or temperature.

Call us today to provide options and a quote on the best model for your application!

Sku:
Vendor: Crystal
On Back-Order

• 0.035% of Reading Accuracy
• Gauge, Absolute, and Differential Pressure to 15,000 psi / 1000 bar / 100 MPa
• Advanced Simplicity "Non-Menu" Interface
• Measure & Source mA with External Loop Power or Internal 24 VDC Power Supply
• High Accuracy Thermometer with "True Ohm" Technology
• Store & Recall Previously Used Screens
• Flexible Power Options Including Rechargeable

See Resources for Product Datasheet

• HPC41 or HPC42

• ISO 17025 Accredited Calibration Certificate, NIST Traceable (Manufacturer - Dated)

• 4 x AA batteries • Your choice of adapters (NPT, BSP, and M20)

• Protective Boot

• Test Leads, red and black with clips

• Velco strap

• User manual

• Mini-USB Cable
