Crystal RTD Probe for RTD100 Module on NVision Recorder

Product Description

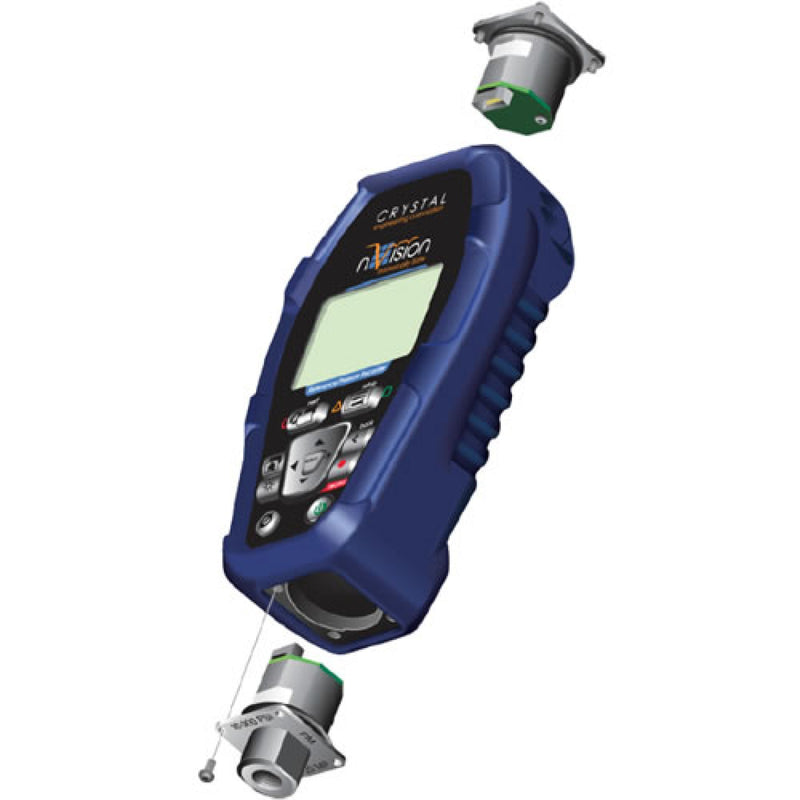

Crystal offers a wide range of RTD probes to connect with the RTD100 Temperature Module on the NVision Reference Recorder. See the most popular options below or contact us today for additional models.

*NIST Calibration Certificate only available when purchased with RTD100 Module.

Sku: CRY-4623-1
Vendor: Crystal
7 left in stock.
$385.00 CAD
Maximum quantity available reached.

Accuracy: ± (0.015% of rdg + 0.02 Ω)
Range: 0 – 400 Ohms range for use with 100 Ohm PRTs
Resolution: 0.01 on all scales Units: °C, K, °F, R, Ω

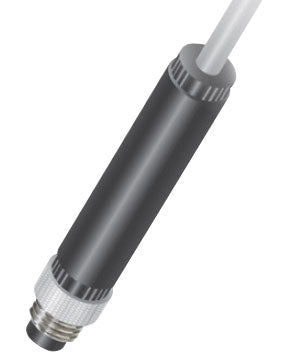

 4623-1 RTD (13 Ft Cable Length)
3-wire Single, Std temp RTD, Pt/385/Class B, 0.12% accuracy, 100 ohm, 4” x 3/16" diameter, 316SS probe, Spring Transition, PVC Insulated, stranded leads, Length= 13 ft. Temperature Range: -40 to 100°C (-40 to 212°F).

 4126 RTD (4 Ft Cable Length)

RTD, 3-wire Single, Std temp RTD, Pt/385/Class B, 0.12% accuracy, 100 ohm, 4” x 3/16" diameter, 316SS probe, Spring Transition, PVC Insulated, stranded leads, Length= 48 in. Temperature Range: -40 to 100°C (-40 to 212°F).

  • Crystal RTD Probe for use with RTD100 Module on NVision Recorder

*RTD100 Module Required (Sold Seperately - See RTD100)
