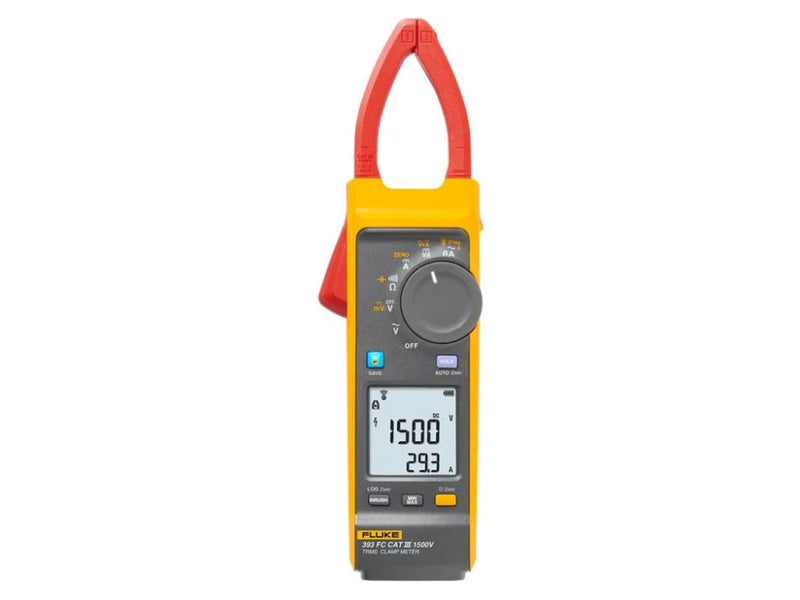

Fluke 393 FC CAT III True RMS Wireless Clamp Meter with iFlex, 1500 V

Product Description

Safely and accurately measure up to 1500 V in DC environments with this rugged CAT III True-RMS Clamp Meter. IP54-rated and with a narrow jaw design, this meter is ideal for tight spaces and provides access to cables in crowded combiner boxes. The included iFlex current probe extends AC measurements up to 2500 A.

Sku: FLU-393FC
Vendor: Fluke
2 left in stock.
$1,087.99 CAD
Maximum quantity available reached.

The 393 FC CAT III 1500 V True-rms Clamp Meter with iFlex is designed for technicians who work in high voltage dc environment: solar arrays, wind power, electric railways, data centers battery banks for uninterruptible power supplies. The clamp will measure up to 1500 V dc, 1000 V ac, and up to 999.9 A dc or ac through the clamp jaw.  The included iFlex flexible current probe extended ac current measurements up to 2500 amps.This clamp has a thin jaw, giving you access to cables in crowded combiner boxes. Test leads are designed with your work in mind, and are also rated to CAT III 1500 V dc.


Other key functions:

  • IP54 rated, ideal for work outdoors on solar arrays and wind power systems
  • DC power measurement, showing readings in kVA
  • Audio Polarity indicator helps prevent accidental miswires
  • Visual Continuity turns provide a bright green light in the display, ideal when working in dark and noisy environments
  • Logging and reporting of test results via Fluke Connect software
  • When measuring ac current the included iFlex flexible current probe gives you unparalleled access to cable is tight spaces.  The iFlex probe can be twisted through extremely small spaces and provide accurate current measurements.
AC Current Jaw
Range 999.9 A
Resolution 0.1 A
Accuracy 2% + 5 digits (10 to 100 Hz)
2.5% + 5 digits (100 to 500 Hz)
Crest Factor (50/60 Hz) 2.5 at 600 A
3 at 500 A
1.42 at 999.9 A
Add 2% for C.F. >2
Flexible Current Probe AC Current
Range 999.9 A
2500 A
Resolution 0.1 A (≤999.9 A) 1 A (≤2500 A)
Accuracy 3% RD + 5 digits (10 to 500 Hz)
Crest Factor (50/60 Hz) 2.5 at 1400 A
3 at 1100 A
1.42 at 2500 A
Add 2% for C.F. >2
DC Current
Range 999.9 A
Resolution 0.1 A
Accuracy 2% RD + 5 digits (when using the ZERO function to compensate for offsets)
AC Voltage
Range 600 V
1000 V
Resolution 0.1 V (≤600 V)
1 V (≤1000 V)
Accuracy 1% RD + 5 digits (20 to 500 Hz)
DC Voltage
Range 600 V
1500 V
Resolution 0.1 V (≤600 V)
1 V (≤1500 V)
Accuracy 1% RD + 5 digits
mV DC
Range 500 mV
Resolution 0.1 mV
Accuracy 1% RD + 5 digits
Jaw Amps Frequency
Range 5 to 500 Hz
Resolution 0.1 Hz
Accuracy 0.5% RD + 5 digits
Trigger Level 5 to 10 Hz, ≥10 A
10 to 100 Hz, ≥5 A
100 to 500 Hz, ≥10 A
Flexible Current Probe Amps Frequency
Range 5 to 500 Hz
Resolution 0.1 Hz
Accuracy 0.5% RD + 5 digits
Trigger Level 5 to 20 Hz, ≥25 A
20 to 100 Hz, ≥20 A
100 to 500 Hz, ≥25 A
Voltage Frequency
Range 5 to 500 Hz
Resolution 0.1 Hz
Accuracy 0.5% RD + 5 digits
Trigger Level 5 to 20 Hz, ≥5 V
20 to 100 Hz, ≥5 V
100 to 500 Hz, ≥10 V
DC Power
Range 600 kVA (600 V DC range)
1500 kVA (1500 V DC range)
Resolution 0.1 kVA
1 kVA
Accuracy 2% RD + 2 KVA
2% RD + 20 kVA
Resistance
Range 600 Ω
6000 Ω
60 kΩ
Resolution 0.1 Ω (≤600 Ω)
1 Ω (≤6000 Ω)
0.01 kΩ (≤60.00 kΩ)
Accuracy 1% RD + 5 digits
Capacitance
Range 100.0 μF
1000 μF
Resolution 0.1 μF (≤100.0 μF)
1 μF (≤1000 μF)
Accuracy 1% RD + 5 digits
Inrush Trigger Level 5 A
Environmental Specifications
Temperature Operating: 14 to 122°F (-10 to 50°C)
Storage: -40 to 140°F (-40 to 60°C)
Operating Humidity Non-condensing (<10°C)
≤90% RH at 50 to 86°F (10 to 30°C)
≤75% RH at 86 to 104°F (30 to 40°C)
≤45% RH at 104 to 122°F (40 to 50°C)
Altitude Operating: 6562' (2000 m)
Storage: 39370' (12000 m)
General Specifications
Maximum Voltage (Between Terminal and Earth Ground) 1000 V AC
1500 V DC
Batteries 2 AA IEC LR6 alkaline
Display Dual display with backlight
Automatic power off 20 minutes
Mechanical Specifications
Jaw Opening 1.3 " (34 mm)
Flexible Current Probe Diameter 0.29" (7.5 mm)
Flexible Current Probe Cable Length 5.9' (1.8 m)
Dimensions 11 x 3.3 x 1.9" (281 x 84 x 49 mm)


  • Clamp Meter
  • Test Leads
  • Flexible Current Probe
  • Magnetic Hanging Strap
  • Carrying Case
