Monarch Nova-Pro 500 LED Stroboscope/Tachometer
Product Description
A combination of all the features of the hand held LED
Nova-Pro™ 500: Has all the features of the 300 and adds an additional standard battery pack, remote laser docking station, phase delay
Integral optical sensor and flash trigger protected under US Patent 10,080,268
The Trademark Nova-Pro is protected under USPTO 87087611
Overview
- Stroboscope & Tachometer in one!
- Super bright LED's
-
*Integral /removable laser module (optional on 100) - Splash resistant IP54 enclosure
- 1/4" x 20 tripod mount
- Ergonomic one handed operation
-
Removable rechargeable Li-ion battery - Continuous AC operation available
- TTL compatible input/output jacks (300, 500)
- NIST Certificate of Calibration included with 300 and 500 models
- *Integral sensor flash trigger protected under US Patent 10,080,268
Benefits of LED
- Energy efficient with long battery life (9 hours typical)
- Extremely bright, uniform light output
- Completely silent
- Cool operation
- No lamp replacements
- Extremely high flash rates (up to 999,999 FPM)
Typical Uses
- Visual running inspections of: Fan blades, motors, shafts, gears, rollers, webs, belts,
sheaves , chains, sprockets and much more without having to shut down your process - Diagnose alignment issues
- Determine speed of rotating equipment using strobe or built in laser tachometer
- Troubleshoot high speed automation processes by placing them in virtual slow motion
- Print quality inspection
- Textile processing inspection
- Phase reference balancing
Specifications
Compare: | 100 | 300 | 500 |
Flash Range (FPM/RPM): | 30-999,999 | 30-999,999 | 30-999,999 |
Display: | 6 Digit Numeric and 5 Digit Alphanumeric LCD Reflective | 6 Digit Numeric and 5 Digit Alphanumeric LCD with Touch Keypad. High Contrast Blue Background/White Characters with Back Light | 6 Digit Numeric and 5 Digit Alphanumeric LCD with Touch Keypad. High Contrast Blue Background/White Characters with Back Light |
Accuracy/Resolution: | 0.001% of Setting or +/-1 Lsd/6 Digits to 0.001 | 0.001% of Setting or +/-1 Lsd/6 Digits to 0.001 | 0.001% of Setting or +/-1 Lsd/6 Digits to 0.001 |
Light Output: | 3400 Lux @ 6000 FPM, 12 inches (30.48cm), 2 |
5500 Lux @ 6000 FPM, 12 inches (30.48cm), 2 |
5500 Lux @ 6000 FPM, 12 inches (30.48cm), 2 |
Flash Duration: | Adjustable 0.1 to 14 degrees (0.001 to 2.0 msecs | Adjustable 0.1 to 14 degrees (0.001 to 2.0 msecs | Adjustable 0.1 to 14 degrees (0.001 to 2.0 msecs |
Light Source: | 12 LED Array | 12 High Output LED Array | 12 High Output LED Array |
Color Temperature: | Approx. 6200°K | Approx. 6200°K | Approx. 6200°K |
External Triggers in/out: | N/A | TTL (12Vdc Max) input. Provides 3.3 |
TTL (12Vdc Max) input. Provides 3.3 |
Tachometer Mode: | 0-999,999 RPM with *Integral Laser (optional) | 0-999,999 RPM with *Integral Laser or External input | 0-999,999 RPM with *Integral Laser or External input |
Programmable Memory: | N/A | Yes (10 set points) | Yes (10 set points) |
Internal Phase Shift: | N/A | N/A | Yes |
Phase Delay - Degrees: | N/A | N/A | -360.0 to 345.0 Degrees |
Time Delay - milliseconds: | N/A | N/A | -50.000 to 50.000 Msec |
Virtual RPM (Slow Motion): | N/A | N/A | -60.0 to 60.0 VRPM |
Power Supply (Battery): | Removable/rechargeable Li-Ion battery pack with 115/230 50/60 Hz recharging station |
Removable/Rechargeable |
|
Operating Time: |
Battery Pack: 9.5 hours typical (6000 FPM, 2 deg. duty cycle) AC Power Adapter (optional): Continuous |
||
Power Supply A/C: | 15/230 Vac 50/60Hz AC Adapter with 6 ft. (3M) Cable and Interchangeable outlet Adapters (optional) | ||
Weight: | 1.4 lbs. (635 Grams) with Standard Battery |
||
Size |
9.5 x 3.75 x 5.5 in. (241 x 95 x 140 mm) | ||
Housing Material/Rating: | PC-ABS blend/IP54 |
*Integral optical sensor and flash trigger protected under US Patent 10,080,268
The Trademark Nova-Pro is protected under USPTO 87087611
What's in the Box
Nova-Pro 500 (6245-010)
Includes 500 Strobe, laser module with remote dock, (2) standard batteries, recharging station with interchangeable wall plugs, NIST cert and manual

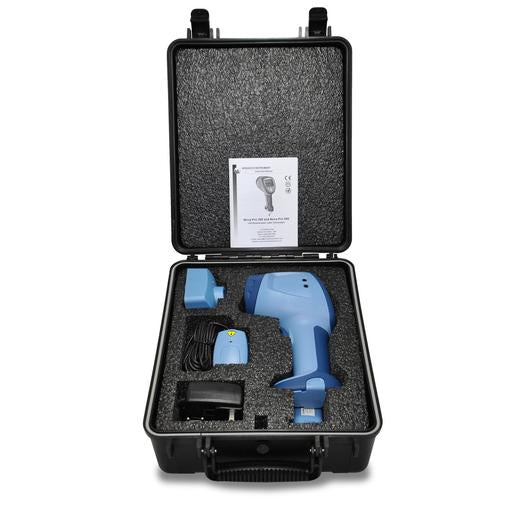

Nova-Pro 500 Kit (6245-011)
Same as above with deluxe die cut foam lined water tight plastic carry case
