PLT200 is a digital, battery-powered portable optical tachometer, which operates up to 25 feet* from a reflective target using a Class 2 laser light source. The ergonomic design allows safe, direct line-of-sight viewing of both the target and the display at the same time, while providing a non-slip rubber surface for single hand operation.
PLT200 is a 32 function Tachometer/Ratemeter, Totalizer/Counter and Timer (stopwatch), which is programmable in both English and Metric linear rates. Support is built-in for both the optional Remote Contact Assembly (RCA) and the Remote Sensors. PLT200 has a TTL compatible Pulse Output to trigger devices like data collectors or stroboscopes. The KIT is supplied complete with a Remote Contact Assembly including concave and convex tips and a 10 cm linear speed wheel and a 5 foot roll of reflective tape all in a latching carrying case.
* performance subject to intensity of ambient light irradiation.
- Operating Range up to 25 feet* (Class 2 visible laser)
- Accepts Remote Contact Assembly (optional)
- Accepts Remote Sensors (optional)
- TTL Pulse Output (requires optional 6 foot BNC Cable)
- Auto Ranging/Fixed Decimal (user selectable)
- English and Metric Rates
- Tripod Mounting Bushing
- On-Target and Low Battery Indicators
- Rugged Rubberized Housing
- N.I.S.T. traceable Certificate of Calibration included
|Display:||5 Digits, 5 Alpha-numeric LCD|
Optical: 5 to 200,000 RPM
Contact RPM: 0.5 to 20,000 RPM (see rates below)
Optical:+/-0.01% of reading
|Resolution:||0.001 to 10 RPM (range dependent)|
|Operating Range:||2 inches to 25 feet*, +/-70°|
|Memory:||Maximum, Minimum and Last reading|
|Power:||(2) "AA" 1.5 VDC batteries (30 hours)|
|Environmental:||Temp: 5° to 40°C (0° to 100°F) RH:80% RH up to 31°C (88°F)|
|Dimensions:||6.92" H x 2.4" W x 1.6" D|
|Weight:||7 oz. (210 g)|
|RATES:||10cm Contact Wheel||12 inch circumference Contact Wheel|
|Inch/min||1.969 to 78,740 IPM||6,000 to 144,000 IPM|
|Feet/min||0.164 to 6,561.7 FT/M||0.500 to 12,000 FT/M|
|Yard/min||0.055 to 2,187.2 YPM||0.167 to 4,000.0 YPM|
|Cm/min||5.000 to 200,000 cm/M||15.240 to 365,760 cm/M|
|M/min||0.050 to 2,000.0 M/M||0.153 to 3,657.6 M/M|
Also reads engineering units in per second and per hour
What's in the Box
Tachometer/timer/totalizer with N.I.S.T traceable certificate of calibration, and 12 in. of Reflective Tape.

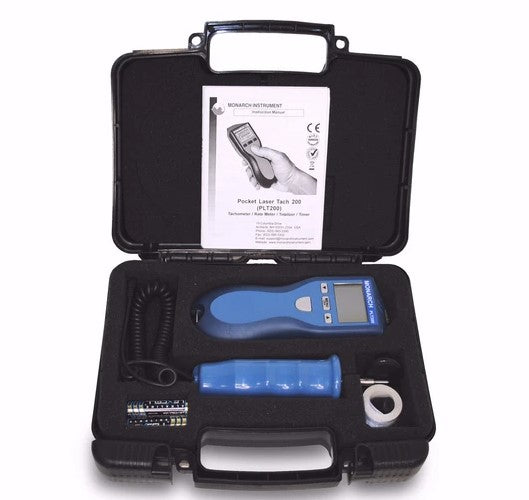

PLT200 Kit (6125-011)
Tachometer/timer/totalizer with N.I.S.T traceable certificate of calibration, 5 feet of Reflective Tape, Carrying Case and Remote Contact Assembly for contact speed measurements.
