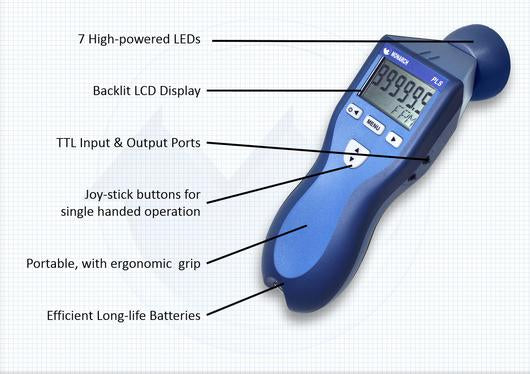

{ "id":1839717253163, "title":"Monarch PLS Pocket LED Stroboscope","handle":"monarch-pls-pocket-led-stroboscope", "description":"\u003cp\u003e\u003cstrong\u003eThe Monarch PLS Pocket LED Stroboscope\u003cspan\u003e \u003c\/span\u003e\u003c\/strong\u003e\u003cspan\u003eis a compact, rugged, lightweight device that provides a super bright, uniform light output for performing visual diagnostic inspection and RPM measurements. The silent cool running LED’s are extremely energy efficient providing up to 5 hours of operation on a single charge. A wide operating range of 30-300,000 flashes per minute covers most industrial applications. Additional features include external input for remote triggering or tachometer mode, pulse output, memory for up to 5 preset flash rates, tachometer mode for speed measurements up to 250,000 rpm using optional remote sensors and TTL pulse output. \u003c\/span\u003e\u003c\/p\u003e\n\u003cp\u003e\u003c!-- split --\u003e\u003c\/p\u003e\n\u003ch2 class=\"hidden\"\u003eOverview\u003c\/h2\u003e\n\u003cul class=\"table\"\u003e\n\u003cli\u003e\u003cspan\u003eEnergy efficient with long battery life\u003c\/span\u003e\u003c\/li\u003e\n\u003cli\u003e\u003cspan\u003eLightweight and pocket-sized\u003c\/span\u003e\u003c\/li\u003e\n\u003cli\u003e\u003cspan\u003eExtremely bright, uniform light\u003c\/span\u003e\u003c\/li\u003e\n\u003cli\u003e\u003cspan\u003eQuiet\/Cool operation\u003c\/span\u003e\u003c\/li\u003e\n\u003cli\u003e\u003cspan\u003eNo lamp replacements\u003c\/span\u003e\u003c\/li\u003e\n\u003cli\u003e\u003cspan\u003eDiagnostic inspection and RPM checks\u003c\/span\u003e\u003c\/li\u003e\n\u003cli\u003e\u003cspan\u003eDigital LCD backlit display\u003c\/span\u003e\u003c\/li\u003e\n\u003cli\u003e\u003cspan\u003eTripod mounting bushing (1\/4-20)\u003c\/span\u003e\u003c\/li\u003e\n\u003cli\u003e\u003cspan\u003eCE marked, RoHS compliant\u003c\/span\u003e\u003c\/li\u003e\n\u003cli\u003e\u003cspan\u003eNIST Certificate included\u003c\/span\u003e\u003c\/li\u003e\n\u003cli\u003e\u003cspan\u003eIntuitive one-hand operation\u003c\/span\u003e\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003c!-- split --\u003e\n\u003ch2 class=\"hidden\"\u003eSpecifications\u003c\/h2\u003e\n\u003ctable width=\"100%\"\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eDisplay:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e\u003cspan\u003eLCD display with 6 numeric 0.506 inch (12.85mm) high digits and 5 alphanumeric 0.282inch (7.11mm) high digits\u003c\/span\u003e\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eIndicators:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e\u003cspan\u003eBattery level, On Target, Select, TACH, and EXT icons\u003c\/span\u003e\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eMemory:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e\u003cspan\u003eLast setting before power down is remembered and restored on next power up. 5 user settable memory locations\u003c\/span\u003e\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eFlash Duration:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e\u003cspan\u003eAdjustable 0.1 to 2500 microseconds or .1 to 18 degrees of rotation (auto adjusts with flash rate)\u003c\/span\u003e\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eSafety:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e\u003cspan\u003eThis product is designed to be safe for indoor use under the following conditions (per IEC61010-1)\u003c\/span\u003e\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eCompliance:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e\u003cspan\u003eCE EN61326-1:2006 EMC 2004\/108\/EC\u003c\/span\u003e\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eOperating Temp.:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e\n\u003cspan\u003e32-104\u003c\/span\u003e\u003cspan\u003e°\u003c\/span\u003e\u003cspan\u003eF (0-40\u003c\/span\u003e\u003cspan\u003e°\u003c\/span\u003e\u003cspan\u003eC)\u003c\/span\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eHumidity:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e\n\u003cspan\u003eMaximum relative humidity 80% for temperature up to 88\u003c\/span\u003e\u003cspan\u003e°\u003c\/span\u003e\u003cspan\u003eF (31\u003c\/span\u003e\u003cspan\u003e°\u003c\/span\u003e\u003cspan\u003eC) decreasing linearly to 50% RH at 104\u003c\/span\u003e\u003cspan\u003e°\u003c\/span\u003e\u003cspan\u003eF (40\u003c\/span\u003e\u003cspan\u003e°\u003c\/span\u003e\u003cspan\u003eC)\u003c\/span\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eInput Power:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e\u003cspan\u003eBattery powered: Internal Li-Ion rechargeable batteries 3.6Vdc\u003c\/span\u003e\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eLight Source:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e\u003cspan\u003e7 LED Array\u003c\/span\u003e\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eLight Ouput:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e\n\u003cspan\u003eAverage: 2000 Lux at 6000 FPM 12” from lens, 2\u003c\/span\u003e\u003cspan\u003e°\u003c\/span\u003e\u003cspan\u003e duty cycle\u003cbr\u003eMax light output: 8300 Lux\u003c\/span\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eColor Temp.:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e\n\u003cspan\u003eApprox. 6200°\u003c\/span\u003e\u003cspan\u003eK\u003c\/span\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eRun Time:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e\n\u003cspan\u003e5 hours typical at 6000 FPM, and 2.8\u003c\/span\u003e\u003cspan\u003e°\u003c\/span\u003e\u003cspan\u003e pulse width with fully charged batteries\u003c\/span\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eCharge Time:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e\u003cspan\u003e4-5 hours typical with supplied charger\u003c\/span\u003e\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eWeight:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e\u003cspan\u003e0.6 lbs (0.27kg) including batteries\u003c\/span\u003e\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eDimensions:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e\u003cspan\u003e7.75\" x 2.75\" x 2.3\" (197 x 70 x 58 mm)\u003c\/span\u003e\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003c\/td\u003e\n\u003ctd\u003e\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eInternal Mode:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eFlash Range:\u003c\/td\u003e\n\u003ctd\u003e\u003cspan\u003e30-300,000 FPM (Flashes per minute) 0.5 to 5000Hz\u003c\/span\u003e\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eFlash Rate Accuracy:\u003c\/td\u003e\n\u003ctd\u003e\n\u003cspan\u003e0.005% of setting or \u003c\/span\u003e\u003cspan\u003e±\u003c\/span\u003e\u003cspan\u003e last digit\u003c\/span\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eFlash Rate Resolution:\u003c\/td\u003e\n\u003ctd\u003e\u003cspan\u003e0.01 to 1 FPM (menu selectable), 0.1 FPM resolution above 9,999.99 FPM, 1 FPM resolution above 99,999.9\u003c\/span\u003e\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eExternal Modes:\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eFlash Range:\u003c\/td\u003e\n\u003ctd\u003e\u003cspan\u003e0-300,000 FPM (Flashes per minute) 0.5 to 5000Hz\u003c\/span\u003e\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eTachometer Mode:\u003c\/td\u003e\n\u003ctd\u003e\u003cspan\u003e30 to 300,000 RPM\u003c\/span\u003e\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eAccuracy:\u003c\/td\u003e\n\u003ctd\u003e\u003cspan\u003e±0.005% of reading or ± last digit\u003c\/span\u003e\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eDisplay Update Rate: \u003c\/td\u003e\n\u003ctd\u003e\u003cspan\u003e0.5 second typical above 120 RPM\u003c\/span\u003e\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eTrigger to Flash Delay:\u003c\/td\u003e\n\u003ctd\u003e\u003cspan\u003e~15 µsec\u003c\/span\u003e\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eExternal Input:\u003c\/td\u003e\n\u003ctd\u003e\u003cspan\u003e2.5V to 12V peak pulse 500 nanosec min pulse width, positive or negative edge triggered (menu selectable)\u003c\/span\u003e\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eDisplay Update Rate:\u003c\/td\u003e\n\u003ctd\u003e\u003cspan\u003eInstantaneous\u003c\/span\u003e\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eOutput Pulse:\u003c\/td\u003e\n\u003ctd\u003e\u003cspan\u003e3V pulse. One pulse per flash in internal mode. Mimics input pulse in external mode\u003c\/span\u003e\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eTime Base:\u003c\/td\u003e\n\u003ctd\u003e\u003cspan\u003eUltra Stable Crystal Oscillator\u003c\/span\u003e\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003cp\u003e\u003cbr\u003e \u003c!-- split --\u003e\u003c\/p\u003e\n\u003ch2 class=\"hidden\"\u003eWhat's in the Box\u003c\/h2\u003e\n\u003cp class=\"ind\"\u003e\u003cb\u003ePLS (6235-010)\u003cbr\u003e\u003c\/b\u003eIncludes Pocket LED Stroboscope, Smart universal 115\/230Vac\u003cspan\u003e \u003c\/span\u003e\u003cgs id=\"886b5933-52f8-45c8-9f3e-7c3fa0ff94ef\" ginger_software_uiphraseguid=\"431fce16-fce3-4936-8e3c-ad2517c7e32d\" class=\"GINGER_SOFTWARE_mark\"\u003e\u003cgs id=\"f1935d83-5561-46e5-a896-3055b01802c4\" ginger_software_uiphraseguid=\"1e085b32-2183-45f6-b505-34a91815bdf3\" class=\"GINGER_SOFTWARE_mark\"\u003erecharger\u003c\/gs\u003e\u003c\/gs\u003e\u003cspan\u003e \u003c\/span\u003ewith interchangeable wall plugs, manual and NIST calibration certificate\u003c\/p\u003e\n\u003cp class=\"ind\"\u003e\u003cstrong\u003ePLS Kit (6235-011)\u003cbr\u003e\u003c\/strong\u003eIncludes Pocket LED Stroboscope, Smart Universal 115\/230Vac\u003cspan\u003e \u003c\/span\u003e\u003cgs id=\"805ce57a-0db1-4e82-b460-4a5ee713e157\" ginger_software_uiphraseguid=\"fb526aa4-1177-4e78-aea1-756e5923aeb8\" class=\"GINGER_SOFTWARE_mark\"\u003e\u003cgs id=\"17e78325-7f7a-4942-a79e-7fd406a68979\" ginger_software_uiphraseguid=\"66833836-7c36-4b80-a9cb-e1440cb0105d\" class=\"GINGER_SOFTWARE_mark\"\u003erecharger\u003c\/gs\u003e\u003c\/gs\u003e\u003cspan\u003e \u003c\/span\u003ewith interchangeable wall plugs, manual and NIST calibration certificate and die-cut foam-lined Plastic Latching Carry Case.\u003c\/p\u003e\n\u003cp class=\"ind\"\u003e\u003cstrong\u003ePLS Kit Plus (6235-012)\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003eIncludes Pocket LED Stroboscope, \u003c\/span\u003e\u003cspan\u003eSmart Universal 115\/230Vac \u003cgs id=\"691d9426-a7b6-40b2-a641-5cc7bbe3de52\" ginger_software_uiphraseguid=\"ed7a1820-9fff-4c9d-bb49-ab975529fa9a\" class=\"GINGER_SOFTWARE_mark\"\u003e\u003cgs id=\"c6abcae5-7f80-421a-8508-cc14dbc32bbd\" ginger_software_uiphraseguid=\"372504d0-15fe-4d09-9341-586f427882b8\" class=\"GINGER_SOFTWARE_mark\"\u003erecharger\u003c\/gs\u003e\u003c\/gs\u003e with interchangeable wall plugs, manual and NIST calibration certificate and die-cut foam-lined Plastic Latching Carry Case\u003c\/span\u003e\u003cspan\u003e. Also includes ROLS-P Remote Optical Sensor with 8ft. cable and 1\/8\" phone plug connector.\u003c\/span\u003e\u003c\/p\u003e\n\u003c!-- split --\u003e\n\u003ch2 class=\"hidden\"\u003eResources\u003c\/h2\u003e\n\u003cp\u003e\u003ca href=\"https:\/\/cdn.shopify.com\/s\/files\/1\/2663\/3750\/files\/Monarch_Brochure.pdf?1683\" target=\"_blank\" title=\"Monarch PLS Stroboscope Specs\" rel=\"noopener noreferrer\"\u003eMonarch PLS Stroboscope Specs\u003c\/a\u003e\u003c\/p\u003e", "published_at":"2019-07-25T11:39:58", "created_at":"2019-07-25T12:00:01", "vendor":"Monarch Instruments", "type":"Stroboscopes", "tags":[], "price":80943, "price_min":80943, "price_max":124217, "price_varies":true, "compare_at_price":null, "compare_at_price_min":0, "compare_at_price_max":0, "compare_at_price_varies":true, "all_variant_ids":[16804407935019,16804407967787,16804408000555], "variants":[{ "id":16804407935019, "product_id":1839717253163, "product_handle":"monarch-pls-pocket-led-stroboscope", "title":"6235-010", "option1":"6235-010", "option2":null, "option3":null, "sku":"MON-6235-010", "requires_shipping":true, "taxable":true, "featured_image":null,"image_id":null, "available":true, "name":"Monarch PLS Pocket LED Stroboscope - 6235-010", "options":["6235-010"], "price":80943, "weight":2268, "compare_at_price":null, "inventory_quantity":0, "inventory_management":"shopify", "inventory_policy":"continue", "inventory_in_cart":0, "inventory_remaining":0, "incoming":false, "next_incoming_date":null, "taxable":true, "barcode":""},{ "id":16804407967787, "product_id":1839717253163, "product_handle":"monarch-pls-pocket-led-stroboscope", "title":"6235-011", "option1":"6235-011", "option2":null, "option3":null, "sku":"MON-6235-011", "requires_shipping":true, "taxable":true, "featured_image":null,"image_id":null, "available":true, "name":"Monarch PLS Pocket LED Stroboscope - 6235-011", "options":["6235-011"], "price":87780, "weight":2268, "compare_at_price":null, "inventory_quantity":4, "inventory_management":"shopify", "inventory_policy":"continue", "inventory_in_cart":0, "inventory_remaining":4, "incoming":false, "next_incoming_date":null, "taxable":true, "barcode":""},{ "id":16804408000555, "product_id":1839717253163, "product_handle":"monarch-pls-pocket-led-stroboscope", "title":"6235-012", "option1":"6235-012", "option2":null, "option3":null, "sku":"MON-6235-012", "requires_shipping":true, "taxable":true, "featured_image":null,"image_id":null, "available":true, "name":"Monarch PLS Pocket LED Stroboscope - 6235-012", "options":["6235-012"], "price":124217, "weight":2268, "compare_at_price":null, "inventory_quantity":0, "inventory_management":"shopify", "inventory_policy":"continue", "inventory_in_cart":0, "inventory_remaining":0, "incoming":false, "next_incoming_date":null, "taxable":true, "barcode":""}], "available":true,"images":["\/\/kingswayinstruments.com\/cdn\/shop\/products\/Monarch_PLS_Pic.jpg?v=1564077605","\/\/kingswayinstruments.com\/cdn\/shop\/products\/Monarch_PLS_Pic2.jpg?v=1564077606"],"featured_image":"\/\/kingswayinstruments.com\/cdn\/shop\/products\/Monarch_PLS_Pic.jpg?v=1564077605", "options":["Model"], "url":"\/products\/monarch-pls-pocket-led-stroboscope"}
