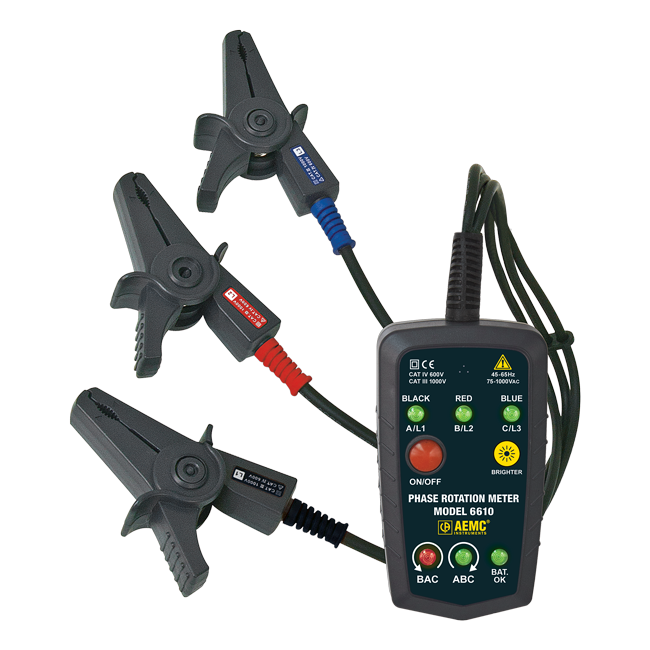

AEMC 6610 Non-Contact Phase Rotation Meter, 45 to 65Hz

Product Description

The Phase Rotation Meter Model 6610 is an essential tool for any installation, inspection and maintenance facility. The Model 6610 is a phase meter with voltage sensing detector clips (no metal contact points) designed to identify phase rotation on 3-phase systems and identify live and open/de-energized phases. The phase order is determined as soon as the leads are connected. The presence of live wires and phase sequence are provided by LED indication and buzzer as soon as detection has occurred. The Model 6610 is ideal for installing rotating machinery or motors, and for checking generator phase rotation direction.

Sku: AEMC-2121.12
On Back-Order
$279.00 CAD

  • No direct electrical contact (no metal contact points)
  • Operating voltage: 75 to 1000V AC
  • Frequency range: 45 to 65Hz
  • Phase rotation LED indicators (ABC or BAC)
  • Bright LED indication Live or Open Phase (A, B, C)
  • Includes three attached color-coded test leads with non-metallic alligator sensor clips for easy connection to the device under test
  • Low battery indicator
  • Back cover includes a magnet feature that can mount the instrument onto any metal cabinet panel for easy measurement
  • EN61010-1; 1000V CAT III; 600V CAT IV
Connection Method Non-Contact Static Induction with Color-coded Leads
Operating Voltage 75 to 1000VAC
Frequency Range 45 to 65Hz
Phase Rotation Indicator LEDs For ABC or BAC Rotation
Auto OFF Yes if not in use for 5 Minutes
Power Supply One 9V Alkaline Battery (Included)
Low Battery Indicator Yes
Dimensions 5.0 x 2.8 x 1.8” (128 x 72 x 46mm)
Maximum Clamping Diameter 1.18" (30mm)
Weight (With Battery) 13.1 oz (375g)
Operating Temperature 14° to 122°F (-10° to 50°C)
Storage Temperature -4° to 140°F (-20° to 60°C)
Relative Humidity 80%
Safety Compliance IEC 61010-1; 1000V CAT III ; 600V CAT IV
Electro-Magnetic Compatibility EN 61326-1
CE Approved Yes


  • 6610 Non-Contact Phase Rotation Meter
  • Attached black, red, and blue test leads with large alligator clips
  • Soft carrying case
  • 9V battery
  • Manual
