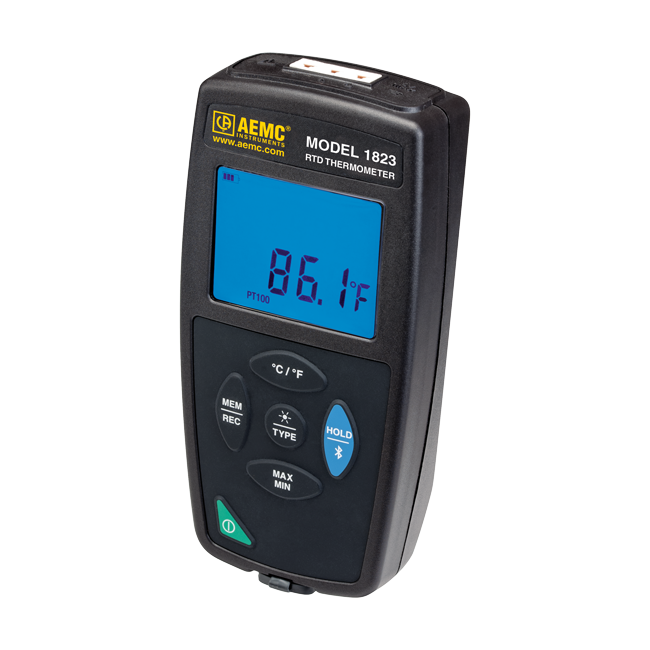

AEMC 1823 RTD Thermometer/Data Logger

Product Description

The RTD 100 and RTD 1000 Thermometer Data Logger Model 1823 is a portable, compact digital meter designed for simplicity and one-hand operation. The main advantage of the logger is its ability to perform a variety of recording tasks with easy and intuitive setup from a computer using supplied DataView® software. RTD sensor not supplied.

Single channel thermometer features RTD temperature measurement with selectable 100 or 1000 Ohm platinum sensor. Spot or continuous recording of up to 1 million measurements.

Sku: AEMC-2121.76
Vendor: AEMC
On Back-Order
$403.65 CAD

  • RTD temperature measurement
  • Works with 100 or 1000 Ohm platinum sensor
  • User selectable temperature units: °F, °C
  • Min and Max measurements stored
  • HOLD function freezes the display
  • Spot or continuous recording up to 1 million measurements
  • Blue luminescent backlit display
  • Programmable store on alarm function
  • Magnetic mount
  • Programmable alarms through software
  • Battery or USB powered
Channel One with LCD display and backlit
Input Connection One standard RTD connector
Sensor Type RTD100 or RTD1000
Measurement Range -148 to 752°F (-100 to 400°C)
Accuracy ± (0.4% of R + 0.6°F/0.3°C)
Resolution 0.1°F or °C
Sampling Rate Programmable for 1 sec, 2 sec, 5 sec, 10 sec, 20 sec, 30 sec, 2 min, 5 min, 10 min, 15 min, 30 min, and 1 hr
Storage Modes Start/Stop and Alarm
Dimensions 5.9 x 2.84 x 1.28" (150 x 72 x 32 mm)
Weight 9.2 oz (260 g) with batteries


  • RTD Thermometer Data Logger
  • 3 x AA Batteries
  • 6' (1.8 m) USB Cable, type A to type B USB
  • 3 pin RTD Connector
  • Quick Start Guide
  • User Manual
  • DataView® application software included on USB Drive
  • Soft Carrying Case
