AEMC 1822 Thermocouple Thermometer Datalogger (Dual Channel)

Product Description

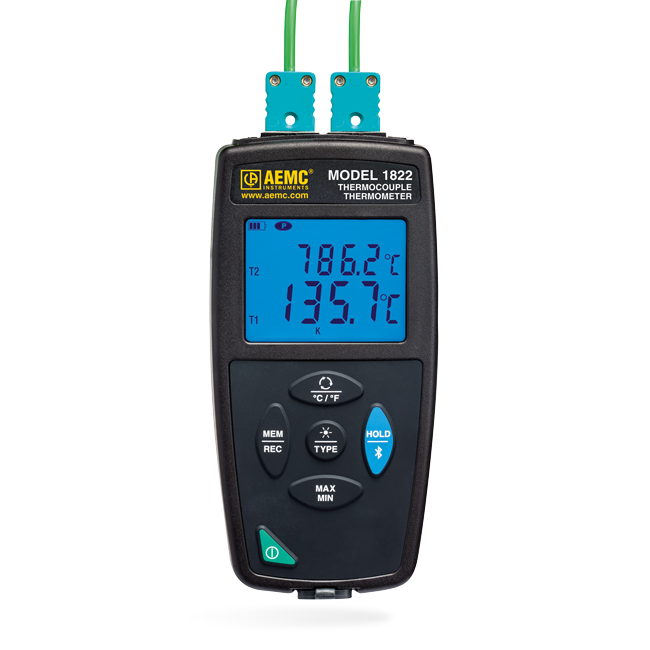

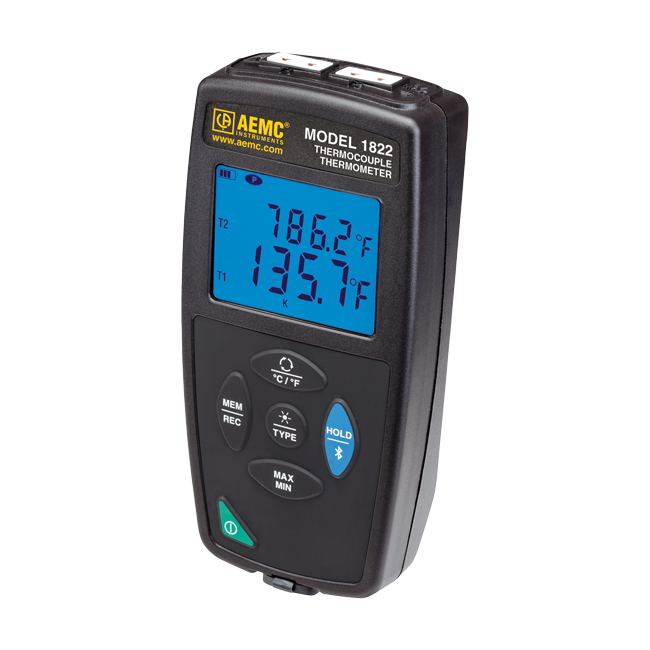

The Thermocouple Thermometer Data Logger Model 1822 is a portable, compact digital meter designed for simplicity and one-hand operation. The main advantage of the logger is its ability to perform a variety of recording tasks with easy and intuitive setup from a computer using supplied DataView® software.

Dual channel thermometer with 7 selectable thermocouple types (J, K, T, N, E, R, S). Spot or continuous recording of up to 1 million measurements.

Sku: AEMC-2121.75
On Back-Order
$581.00 CAD

  • Selectable Thermocouple type: J, K, T, N, E, R, S
  • Dual channel and dual line display
  • User selectable temperature units: °F, °C
  • Min, and Max measurements stored
  • HOLD function freezes the display
  • Spot or continuous recording up to 1 million measurements
  • Blue luminescent backlit display
  • Programmable store on alarm function
  • Magnetic mount
  • Programmable alarms through software
  • Battery or USB powered
Channel Two with LCD display and Backlight

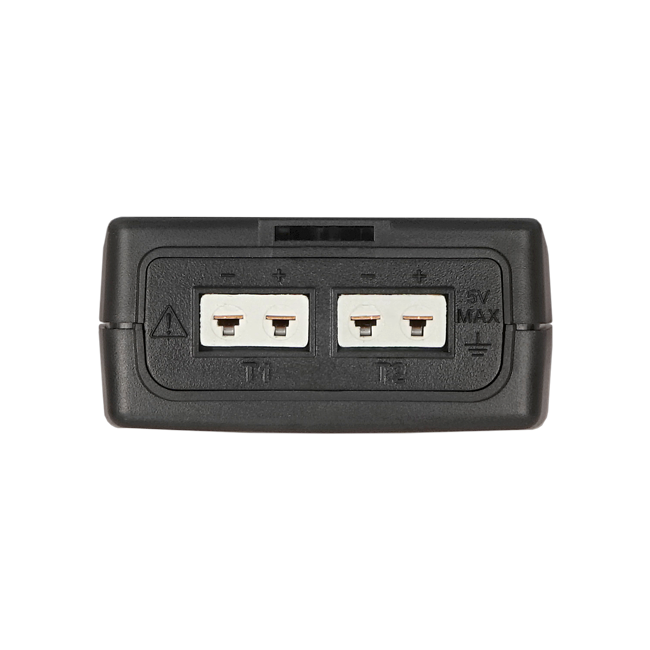

Input Two miniature thermocouple connectors
Measurement Range (Thermocouple Dependent) J: -346 to 2192°F (-210 to 1200°C)
K: -328 to 2501°F (-200 to 1372°C)
T: -328 to 752°F (-200 to 400°C)
N: -328 to 2372°F (-200 to 1300°C)
E: -238 to 1742°F (-150 to 950°C)
R/S: 32 to 3212°F (0 to 1767°C)
Alarms Alarm thresholds set using the software. Visual alert on the product, recording can be triggered on alarm thresholds
Communication USB 2.0 and Bluetooth
Power Source 3 x AA Batteries or USB port (micro-USB adaptor offered as an accessory)
Safety Compliance IEC 61010-1
Dimensions 5.9 x 2.84 x 1.28" (150 x 72 x 32 mm)
Weight 9.2 oz (260 g) with batteries


  • Thermocouple Thermometer Datalogger
  • 3 x AA Batteries
  • 6' (1.8 m) USB Cable, type A to type B USB
  • Quick Start Guide
  • 2 x K Thermocouple Flexible Sensor
  • User Manual
  • DataView® application software included on USB Drive
  • Soft Carrying Case
