AEMC 8336 PowerPad III Power Quality Analyzer with AmpFlex Sensors, 24"

Product Description

The PowerPad® III Model 8336 is a three-phase power quality analyzer that is easy-to-use, compact and shock resistant. It enables technicians and engineers to measure and carry out diagnostics and power quality work on one-, two- or three- phase networks. Five voltage and four current inputs are provided. It is IEC 61000-4-30 Class B and safety rated to 600V CAT IV.

The Model 8336 has 2GB of memory available for storing trend data. Additional internal memory is used to let you store alarms, transients, and snapshot data. The user can store up to 50 screen snapshots, up to 210 captured transients that contain four cycles for each active input, and 10,000 alarm events from up to 40 different parameters. Trend data can also be recorded for days, weeks or even months. Inrush current can also be captured and stored.

IMPORTANT WARRANTY NOTE: By registering online within 30 days from the date of purchase, your warranty will be extended to 3 years.

Sku: AEMC-2136.31
On Back-Order
$9,275.00 CAD

  • Measurement of TRMS voltages up to 1000Vrms AD/DC for two-, three-, four- or five-wire systems
  • Measurement of TRMS currents up to 10kArms (sensor dependent)
  • Measures up to 5000ADC with the AC/DC Current Probe Model J93
  • Frequency measurement (40 to 70Hz systems)
  • Records and displays trend data as fast as once per second for one month up to 41 variables
  • Captures up to 210 transient occurrences on all V and A inputs
  • Measures harmonics (referenced to the fundamental or RMS value) for voltage, current or power up to the 50th harmonic
  • Recording, time stamping and characterization of disturbance (swells, sages and interruptions, exceedance of power and harmonic thresholds)
  • 2GB SD Card for Trend Recording memory; Alarm, Snapshot, Transient and Inrush stored in internal flash memory
  • Measures energy VAh, VARh & Wh
  • 65&micrp;s/sample transient recording
  • FREE DataView® software is included for configuring real-time display and report generation

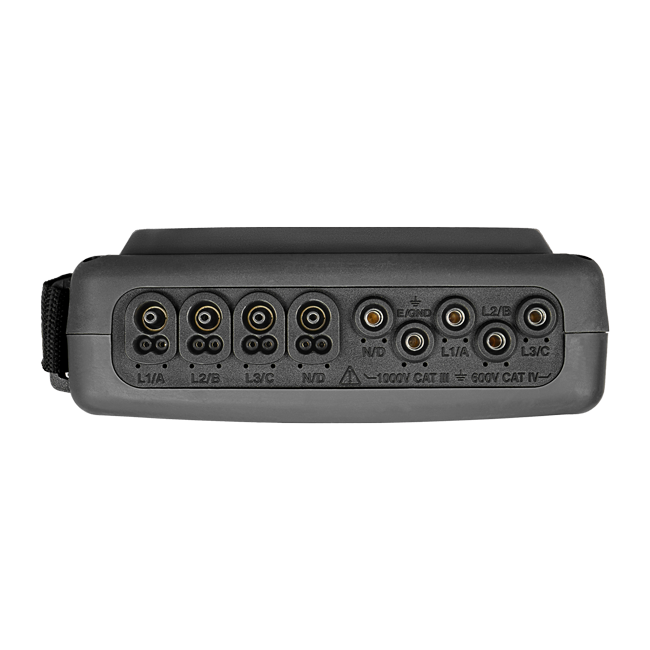

Input Terminals 5 voltage / 4 current
Inputs 4 voltage / 4 current
Voltage (TRMS AC+DC) 2 to 1000V
Voltage Ratio Up to 500kV
Current (TRMS AC+DC) MN93: 500mA to 200A AC
MN193: 0.005 to 100A AC
SR193 Clamp: 1A to 1000A AC
AmpFlex ® or MA193 Clamps: 100mA to 10000A AC
MR193 Clamp: 1A to 1300A AC/DC
SL261 Clamp: 50mA to 100A AC/DC
Current Ratio: up to 60kV
Frequency (Hz) 40 to 69Hz
Distribution Systems 1P 2W, 1P 3W, 2P 2W, 2P 3W, 2P 4W, 3P 3W, 3P 4W
and 3p 5W, 2 1/2 Element & Aron meters
Power Values W, VA, var, VAD, PF, DPF, cos Φ, tan Φ
Energy Values Wh, VARh, VAh, VADh
Harmonics 1st to 50th, Direction, Sequence
THD: 0 to 50, phase
Transients up to 210
Flicker (Pst & Plt) Yes
Inrush Mode Yes, >10 min
Unbalance Yes
Recording Yes
Alarm Mode 40 types; 10,000 recorded
Peak Yes
Phasor Display Automatic
Display Color 1/4 VGA TFT screen (320 x 240) diagonal 148mm
Snapshots 50
Electrical Safety IEC 61010, 1000V CAT III / 600V CAT IV
Protection IP50
Languages More than 27
Communication Interface USB
Battery Life >13 hrs, 25 hrs in Record Mode
Power Supply 9.6V NiMH rechargeable battery pack (included)
External AC supply: 110/230V AC ±10% (50/60Hz)
Dimensions / Weight 9.8 x 7.8 x 2.6" (240 x 180 x 55mm) / 4.3 lbs (1.95kg)
  • PowerPad III Power Quality Analyzer

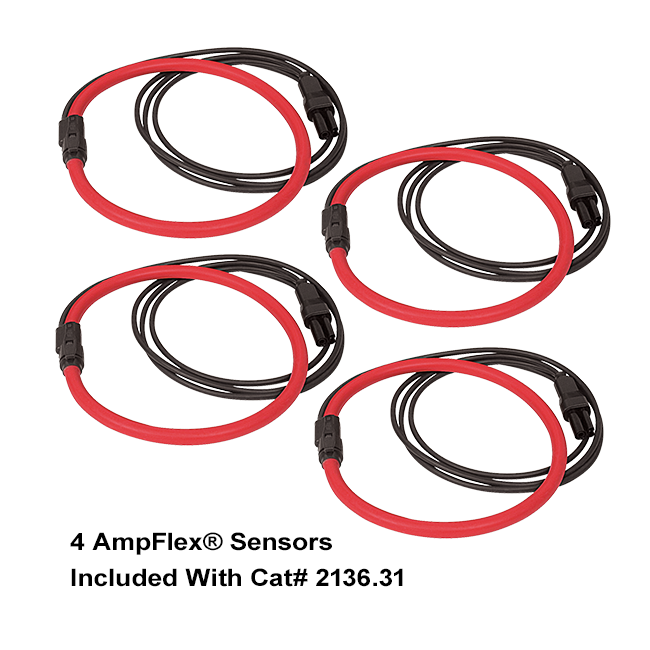

  • 3 x 24" AmpFlex Flexible Sensors
  • 5ft USB Cable
  • 4 x 10ft Black Voltage Leads with Alligator Clips
  • 12 x Color-Coded Input ID Markers
  • Power Adapter
  • SD-Card
  • Extra Large Tool Bag
  • Soft Carrying Pouch
  • 9.6V NiMH Battery
  • Quick Start Guide
  • USB Stick containing DataView Software and Manual
